Level up your business with Stack Link
Intuitive Web management interface with an enhanced navigation pane.
Non-PoE and PoE+ models for deployment flexibility.
Fanless design available on four models for quiet operation.
Customizable features for enhanced network performance
Intuitive Web management interface with an enhanced navigation pane.
Non-PoE and PoE+ models for deployment flexibility.
Fanless design available on four models for quiet operation.
Customizable features for enhanced network performance

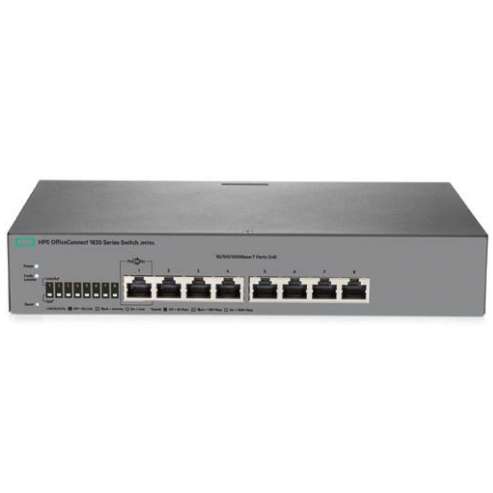

Product Differentiator (long)Basic smart managed 8-port Gigabit switch. This model has 8x 10/100/1000 ports.
Power Consumption Description12.2 W (maximum)
Input Voltage100 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports(8) RJ-45 autosensing 10/100/1000 ports Supports a maximum of 8 autosensing 10/100/1000 ports
Latency100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.4 µs
Routing/switching Capacity104 Gbps maximum, depending on configuration
Switching Capacity16 Gbps
Throughputup to 11.9 Mpps
Memory and ProcessorARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
Management FeaturesWeb browser
Detailed Product DescriptionHPE OfficeConnect 1820 switch with 8 1GbE ports
