The HPE OfficeConnect 1950 Series is a smart Web-managed 10-Gigabit and Gigabit platform for advanced small business networks needing the highest performance now or in the future.
The HPE OfficeConnect 1950 Series is a smart Web-managed 10-Gigabit and Gigabit platform for advanced small business networks needing the highest performance now or in the future.

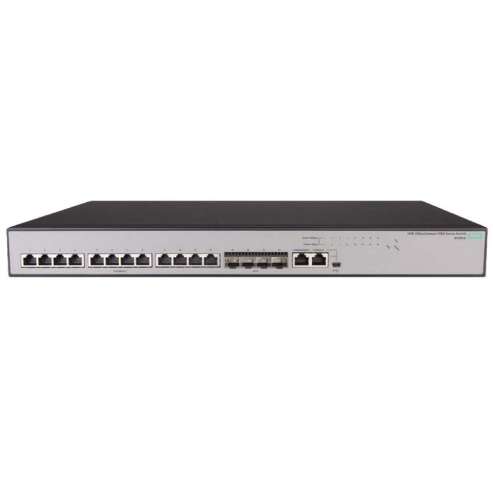

The HPE OfficeConnect 1950 Switch Series includes five switches: New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10GBASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network.
The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices.
The HPE OfficeConnect 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true stacking—of two aggregation switches and separately of up to four access switches—with multiple units logically administered as a single entity, simplifying administration while supporting greater network redundancy. Models support both rack mounting and desktop operation.
Technical Specifications:
Product Name | 1950 12XGT 4SFP+ Switch |
Manufacturer Part Number | JH295A |
Product Line | OfficeConnect |
Product Series | 1950 |
Product Model | 1950 12XGT 4SFP+ |
Packaged Quantity | 1 |
Product Type | Layer 3 Switch |
Interfaces/Ports | |
Total Number of Network Ports | 12 |
Uplink Port | No |
Modular | Yes |
Stack Port | Yes |
Port / Expansion Slot Details | 12 x 10 Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Expansion Slot |
I/O Expansions | |
Number of Total Expansion Slots | 4 |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Media & Performance | |
Media Type Supported | Twisted Pair
Optical Fiber |
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology | 10GBase-T
10GBase-X |
Network & Communication | |
Layer Supported | 3 |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | No |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7″ |
Width | 17.3″ |
Depth | 6.3″ |
