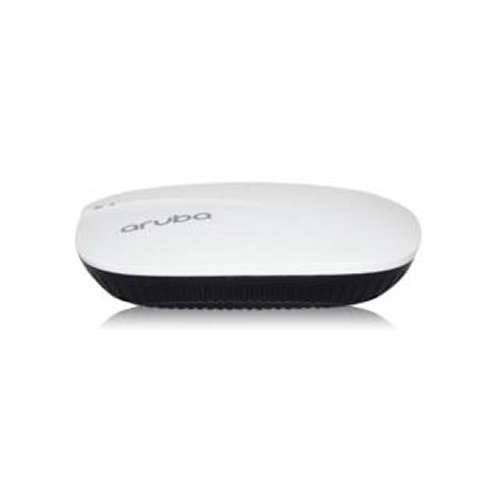

JX954A is the Aruba Instant IAP-207 (RW) 802.11n/ac 2×2:2 Dual Radio Integrated Antenna AP.
Aruba IAP is the standalone AP without controller.
Distributed, controllerless WLAN with Aruba Instant now.
JX954A is the Aruba Instant IAP-207 (RW) 802.11n/ac 2×2:2 Dual Radio Integrated Antenna AP.
Aruba IAP is the standalone AP without controller.
Distributed, controllerless WLAN with Aruba Instant now.
The benefits of Aruba AP-207 include:
• Dual Radio 802.11ac Access Point
– Supports up to 867 Mbps in the 5GHz band (with 2SS/VHT80 clients) and up to 400 Mbps in the 2.4GHz band (with 2SS/VHT40 clients).
• Built-in Bluetooth Low-Energy (BLE) radio
– Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.
– Enables management of a network of Aruba Beacons.
• Advanced Cellular Coexistence (ACC) – Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment.
• Quality of Service for Unified Communication apps
– Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business, with encrypted videoconferencing, voice, chat and desktop sharing.
• RF Management
– Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
– The Aruba 207 Series APs can be configured to provide part-time or dedicated air monitoring for wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
• Intelligent app visibility and control
– AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories.
• Security
– Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
Technical Specifications:
Type |
Aruba Instant IAP-207 (RW) |
Wireless Protocol |
802.11a/b/g/n/ac |
Data Link Protocol |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Compliant Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az |
Wi-Fi Bands |
2.4 GHz, 5 GHz |
Antenna Form Factor |
Internal |
Dimension (W × D × H) |
5.9 in × 5.9 in × 1.6 in |
Weight |
13.4 oz |
