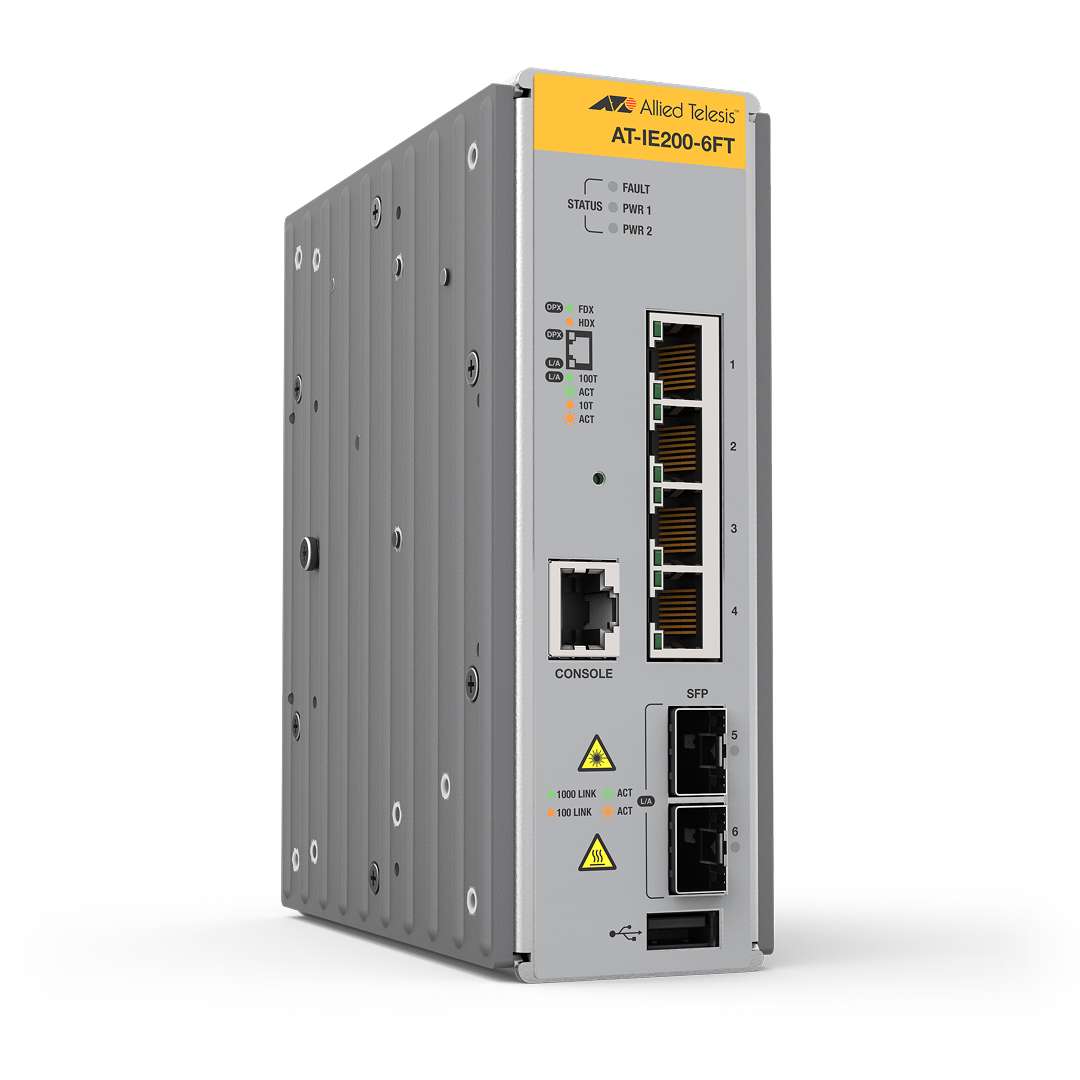

Allied Telesis AT-IE200-6FT-80 Network Switch
General Specifications
- Model: Allied Telesis AT-IE200-6FT-80
- Ports: 6 x 10/100BASE-T Ethernet ports (4 x PoE+)
- PoE Support: PoE+ (IEEE 802.3at) with up to 30W per port
- Switching Capacity: 1.6 Gbps
- Forwarding Rate: 1.19 Mpps
- Layer Support: Layer 2 switching
Allied Telesis AT-IE200-6FT-80 Network Switch
General Specifications
- Model: Allied Telesis AT-IE200-6FT-80
- Ports: 6 x 10/100BASE-T Ethernet ports (4 x PoE+)
- PoE Support: PoE+ (IEEE 802.3at) with up to 30W per port
- Switching Capacity: 1.6 Gbps
- Forwarding Rate: 1.19 Mpps
- Layer Support: Layer 2 switching
Product Details
The Allied Telesis AT-IE200-6FT-80 Network Switch is an industrial-grade, managed Layer 2 Ethernet switch, designed for harsh environments such as factories, transportation, and outdoor network installations. Featuring 6 Fast Ethernet ports, including 4 PoE+ ports, this rugged switch ensures reliable, high-speed connectivity while powering network devices like IP cameras, access points, and industrial IoT equipment. Built to withstand extreme temperatures, vibrations, and shocks, it is ideal for mission-critical applications that require robust and secure network performance.
Specifications Table
| Category | Specification |
|---|---|
| Model | Allied Telesis AT-IE200-6FT-80 |
| Port Configuration | 6 x 10/100BASE-T Ethernet ports (4 x PoE+) |
| PoE Support | PoE+ (IEEE 802.3at), up to 30W per port |
| Switching Capacity | 1.6 Gbps |
| Forwarding Rate | 1.19 Mpps |
| Layer Support | Layer 2 |
| Management | Web GUI, CLI, SNMP, Allied Telesis AMF |
| Power Input | 48V DC (supports redundant power inputs) |
| Security Features | VLANs, ACLs, 802.1X authentication, MAC filtering |
| Mounting Options | DIN-rail, wall-mountable |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Certifications | IP30-rated, CE, FCC, UL, RoHS |
